Lessons in Drawboring

So this one, unfortunately, goes into the Doh! files.  See it you can figure out what I did wrong (its not hard).

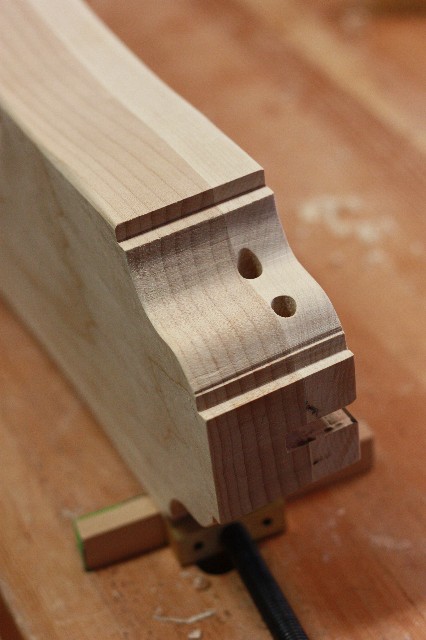

I started out by drilling the holes for the draw bore pegs in the bottom of the chop.

Then I marked the location to drill on the tenon.

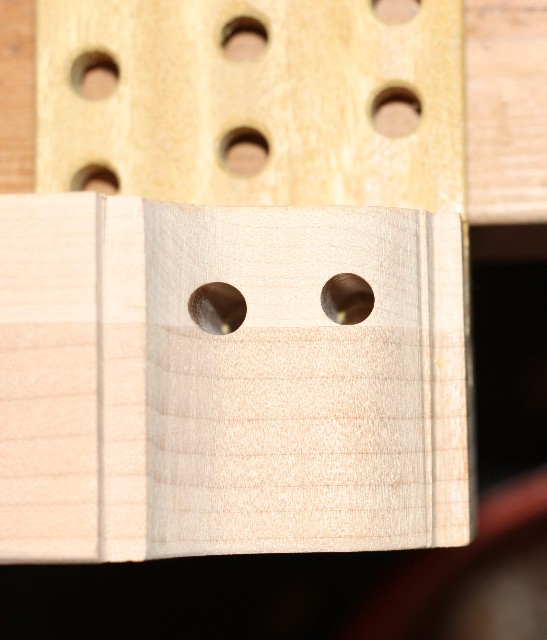

Here you can see the lined up hole.  The holes on the tenon should be slightly off set.  (hint – this is where I boo booed.)

After pounding the peg material through the dowel plate to make pegs, I whittle the ends so that they will make the cruve.

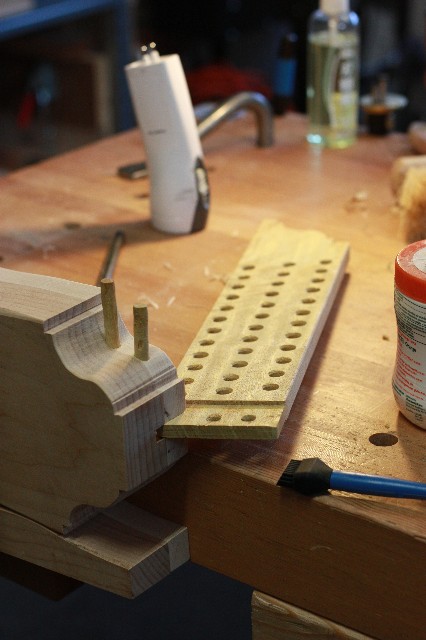

Here are the pieces all lined up so that I can add glue to the tenon (not necessary).

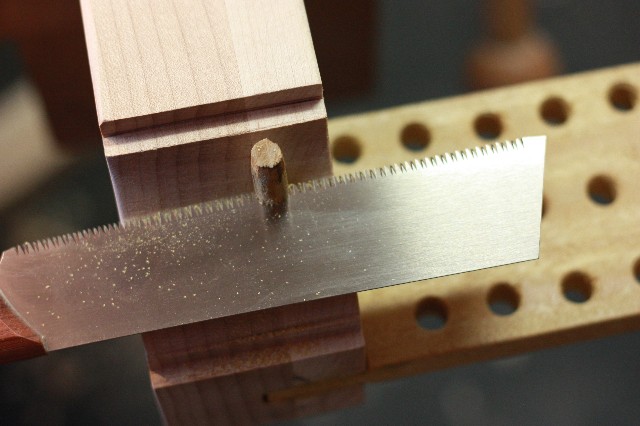

Once the pegs were pounded in, I used my flush cut saw to trim them.

The pegs were a little messy after trimming.

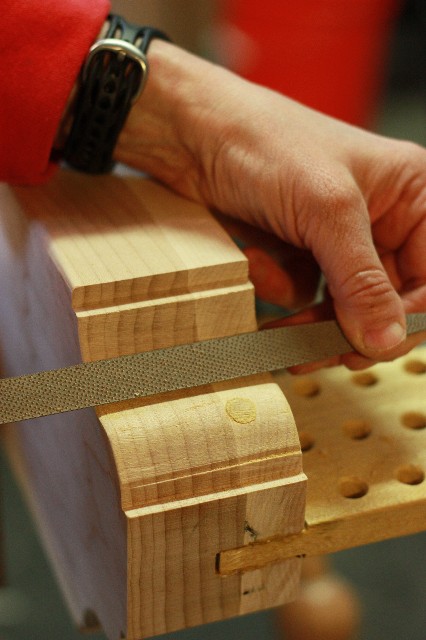

So rasp to the rescue.

Here’s how it turned out.  Notice the 1/16″ gap.  Darn!  The tenon was a perfect fit prior to pegging.  Figured it out yet?

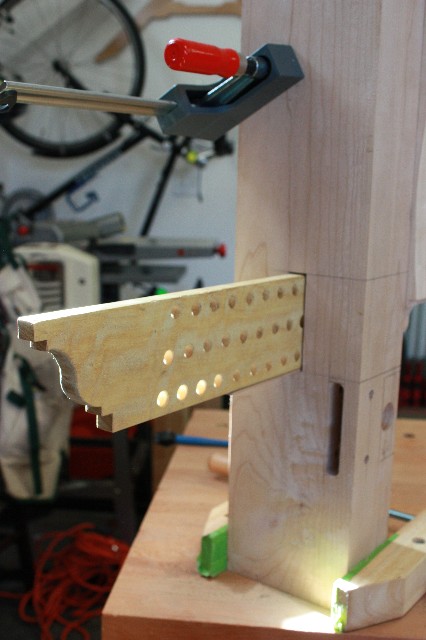

The parallel guide is now centered through the mortise.

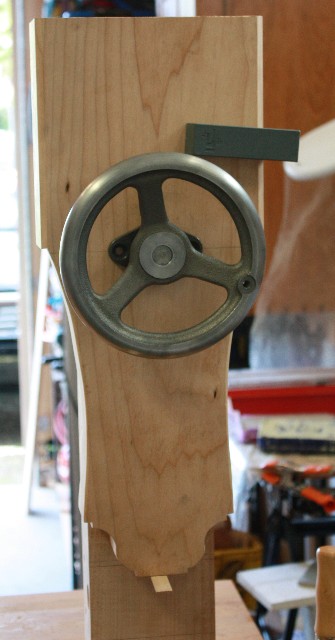

And its starting to look like a vise!

The proper what to do it: Chris Schwarz – Drawbore Pins Part1 – Theory and Preparation
